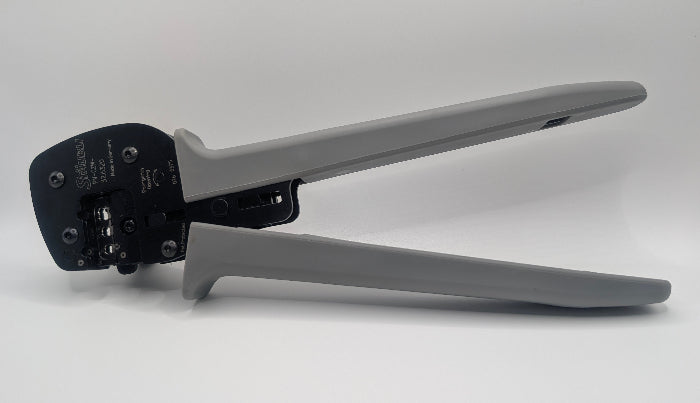

Stäubli MC4 Crimp Tool

Official Stäubli CZM-64100 Crimping Tool

Genuine Stäubli crimping tool for MC4 and EVO2 terminals — the manufacturer-approved tool required to maintain UL compliance on your PV cable assemblies. Handles both machined and stamped/formed contacts with a single tool.

Crimping pliers are required for UL-compliant MC4 terminations — imitation tools risk voiding compliance.

What's included

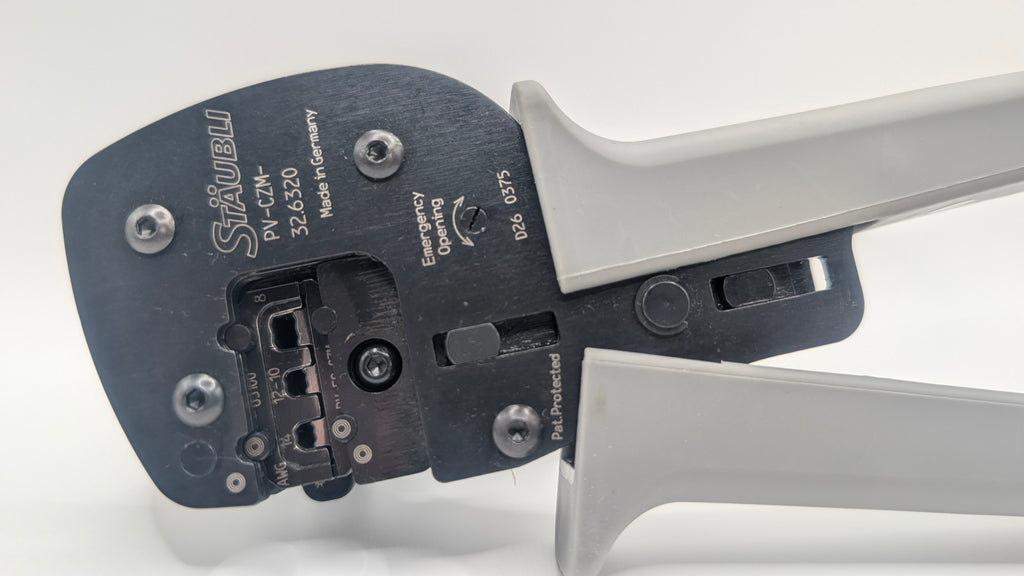

• Stäubli CZM-64100 crimping tool body
• Die set 1 (pre-installed): Die 32.6021-63100 + Locator 32.6085 — for closed crimp contacts (O-Crimp), 14/12/10/8 AWG

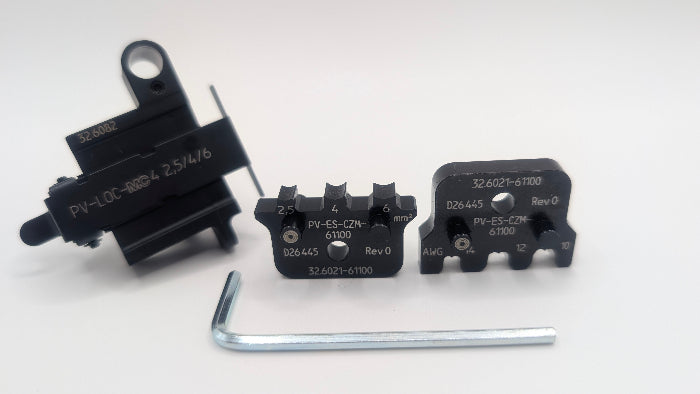

• Die set 2 (included): Die 32.6021-61100 + Locator 32.6082 — for open crimp contacts (B-Crimp), 2.5mm² / 4mm² / 6mm²

Specifications

• Manufacturer part #: 32.6020-64100 (PV-CZM-64100)
• Crimp range: 8–14 AWG
• Compatible with: MC4 and EVO2 terminals, machined and stamped/formed
• Die sets included: 2

We're an authorized source for genuine Stäubli tooling — not aftermarket copies. A correctly crimped MC4 connection is a code-compliance and fire-safety issue, and off-brand dies can produce out-of-spec crimps that pass a visual check but fail pull-testing. Buy the tool the manufacturer built for the terminal.
