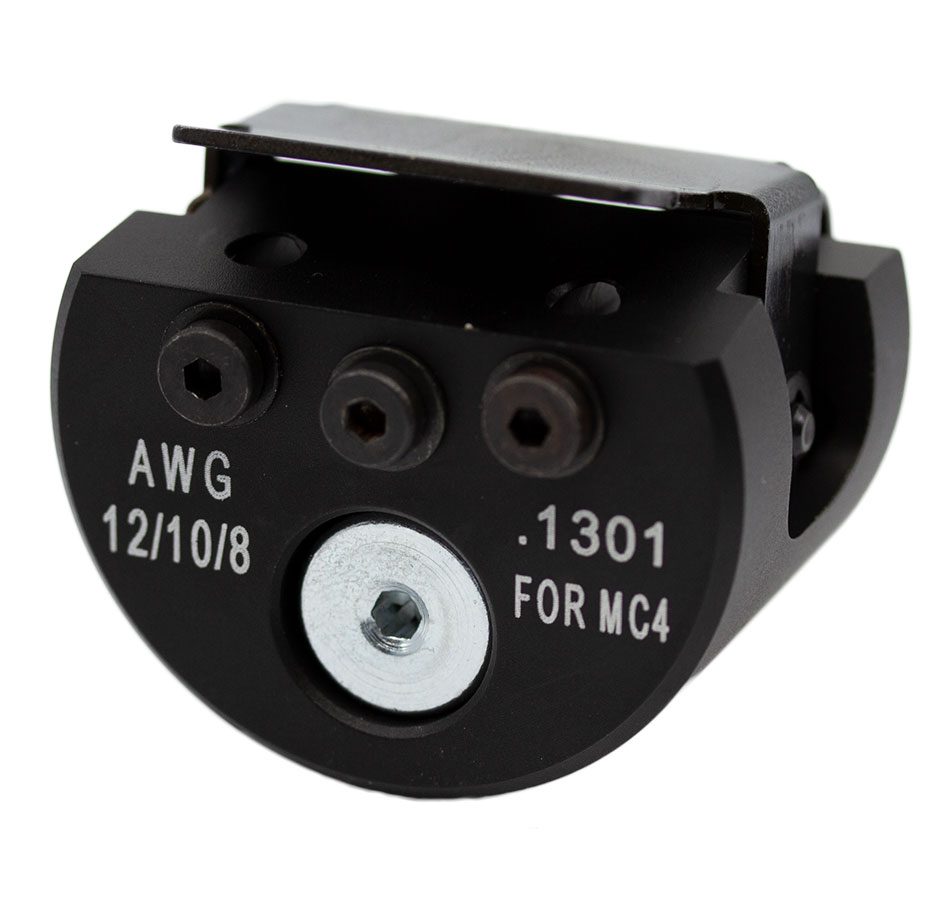

Rennsteig Stäubli MC4 Crimping Tool w/Die Set + Locator
$281.00
Skip to product information
Part# 624 1301 3 1 RT

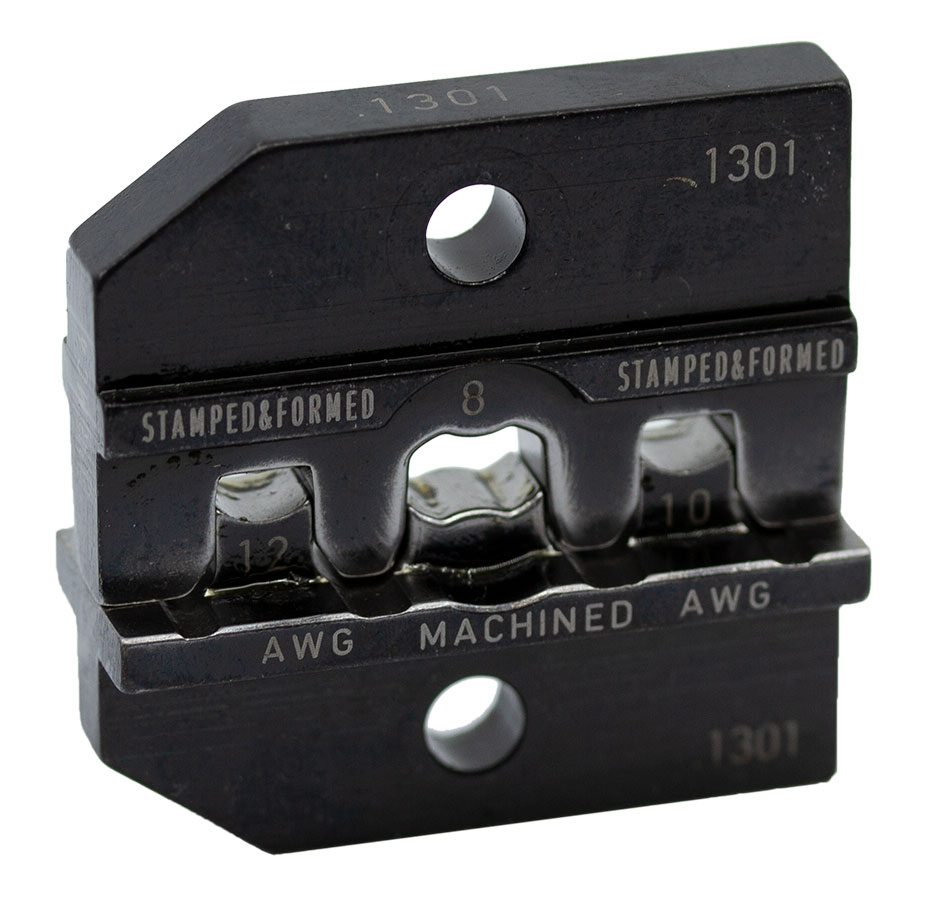

This crimping die set is recommended for crimping of MC4/PV4-S/Tlian/Twinsel/Leoni/BizLink/Enphase contacts.
Stäubli
PV-SP4/2.5, PV-BP4/2.5, PV-SP4/6, PV-BP4/6
PV-KBT4/2,5I-UR (2.5 SQ-MM | 14 AWG) — PV-KST4/2,5I-UR (2.5 SQ-MM | 14 AWG)
PV-KBT4/2,5II-UR (2.5 SQ-MM | 14 AWG) — PV-KST4/2,5II-UR (2.5 SQ-MM |14 AWG)
PV-KBT4/2,5X-UR (2.5 SQ-MM | 14 AWG) — PV-KST4/2,5X-UR (2.5 SQ-MM | 14 AWG)
PV-KBT4/6I-UR (4/6 SQ-MM | 12/10 AWG) — PV-KST4/6I-UR (4/6 SQ-MM | 12/10 AWG)
PV-KBT4/6X-UR (4/6 SQ-MM | 12/10 AWG) — PV-KST4/6X-UR (4/6 SQ-MM | 12/10 AWG)
PV-KBT4/6II-UR (4/6 SQ-MM | 12/10 AWG) — PV-KST4/6II-UR (4/6 SQ-MM | 12/10 AWG)
Tlian
T4-PC-1/T4-PPE-1
T4-MFC = T4 Male and Female Contact (-)/(+)
T4-FSC = T4 Female Socket Contact (+) In a Roll
T4-MPC = T4 Male Pin Contact (-) In a Roll
Twinsel – PV-SY02M/PV-SY02F
Leoni – LSC-R1
BizLink – S418-F1A/S418-F2A
TE Tyco OV4-S – 2270251, 2270226, 2270253, 2270252
Enphase – Q-CONN-10M & Q-CONN-10F
